Ebara Pumps
Japanese Engineering Excellence.
With over a century of precision engineering, Ebara is a world-leading pump manufacturer. Ebara pumps are specified by municipalities, industrial plants and contractors for water supply, wastewater treatment and process applications worldwide.
Product Ranges
Available Models

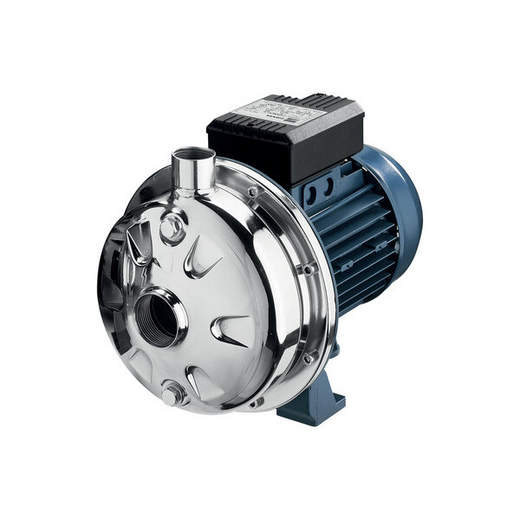

CDX(L) Series
Single impeller centrifugal pump with hydroformed components for sturdiness, hydraulic efficiency and reliability. Suitable for domestic pressurisation, small irrigation, water treatment plants and evaporative towers.
Key Specs
- Total head 45.5 to 13.5 m
- Flow rate 1.2 to 15 m³/h
- Liquid temperature -5°C to +60°C (standard) / +90°C (extended range)
- Hydraulic efficiency index MEI > 0.4
- Hydroformed stainless steel components
Models

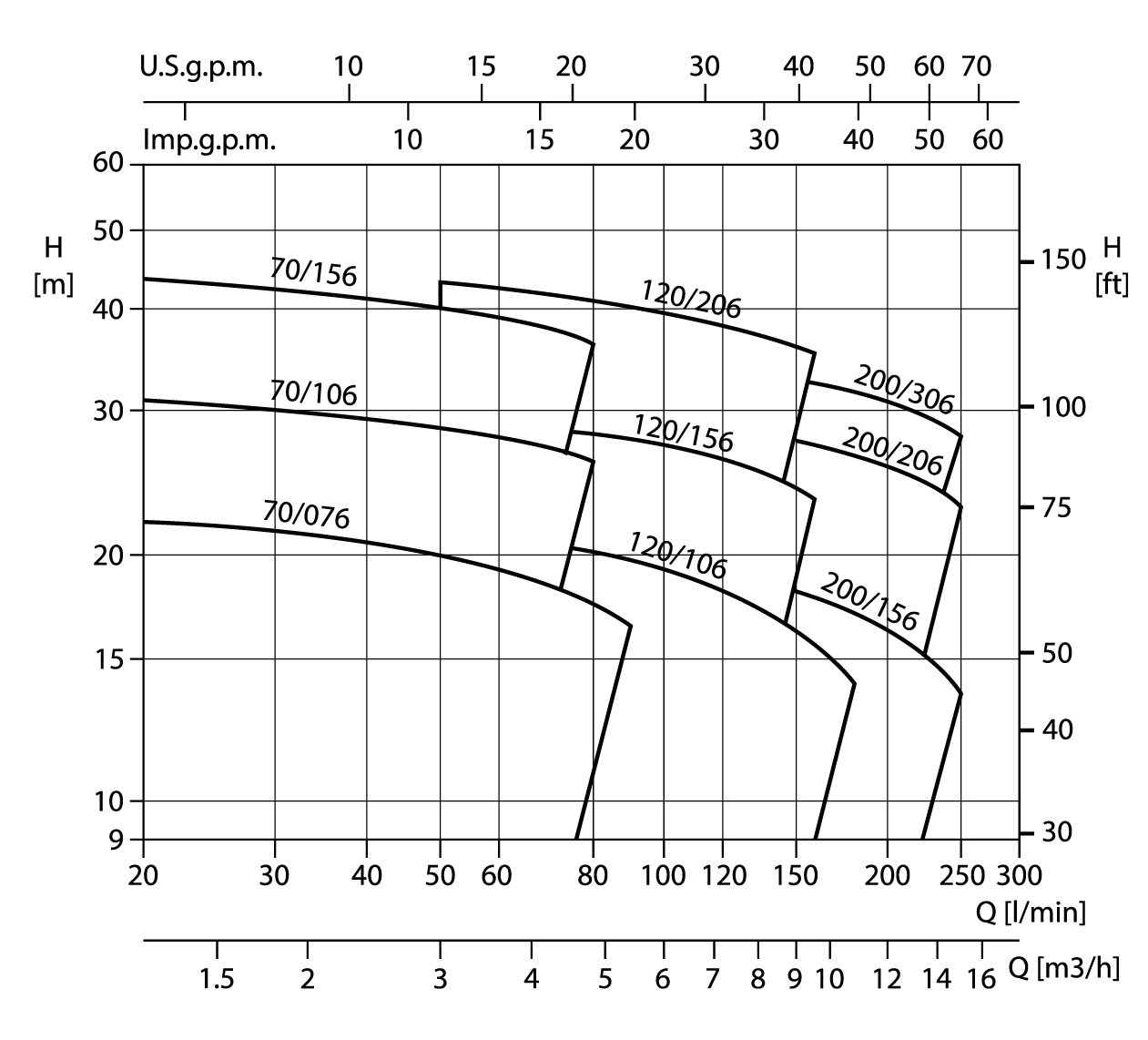

Range Performance Guide

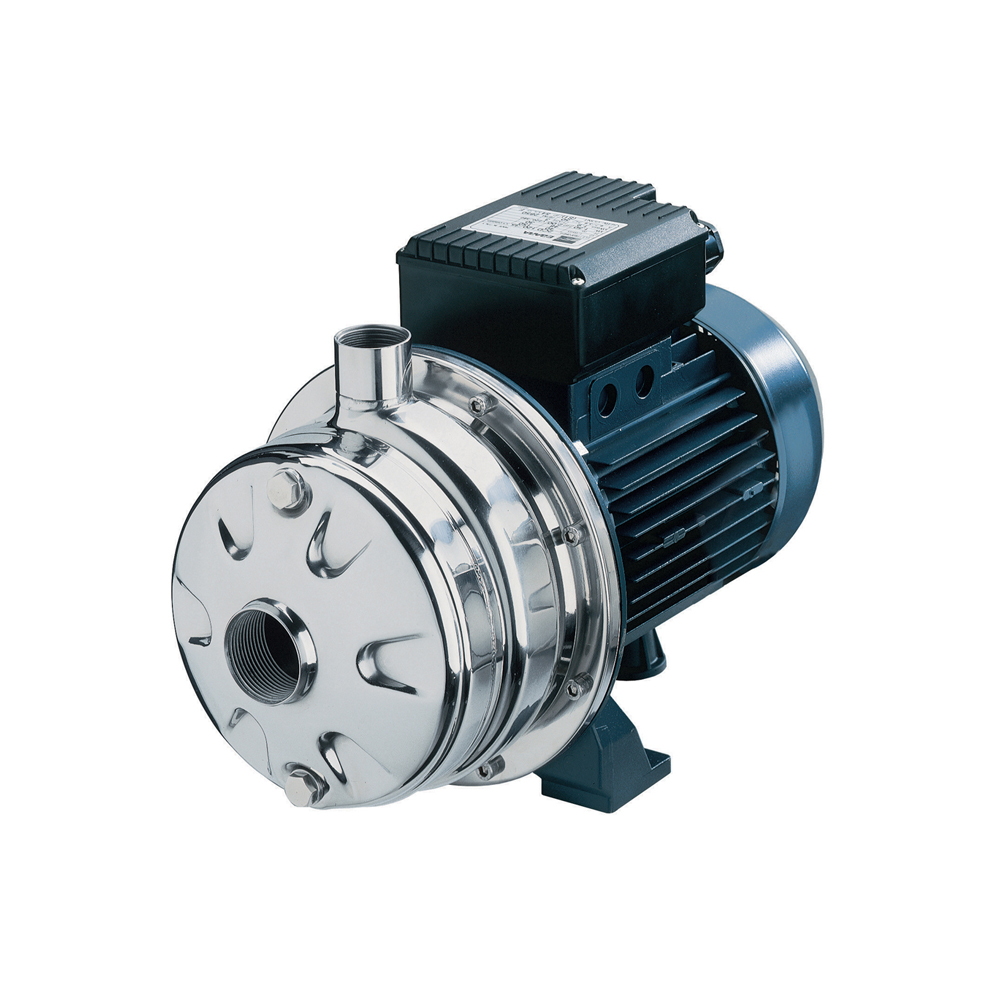

2CDX(L) Series
Twin-impeller centrifugal pump offering a wider performance range than the single-impeller CDX. Standard mechanical seal in Ceramic/Carbon/NBR; special seals available.
Key Specs
- Flow rate 1.2 to 12.6 m³/h
- Total head 71.5 to 27 m
- Max. working pressure 8 bar
- Temperature -5°C to +60°C standard / +110°C H versions
- Twin impeller for wider performance range

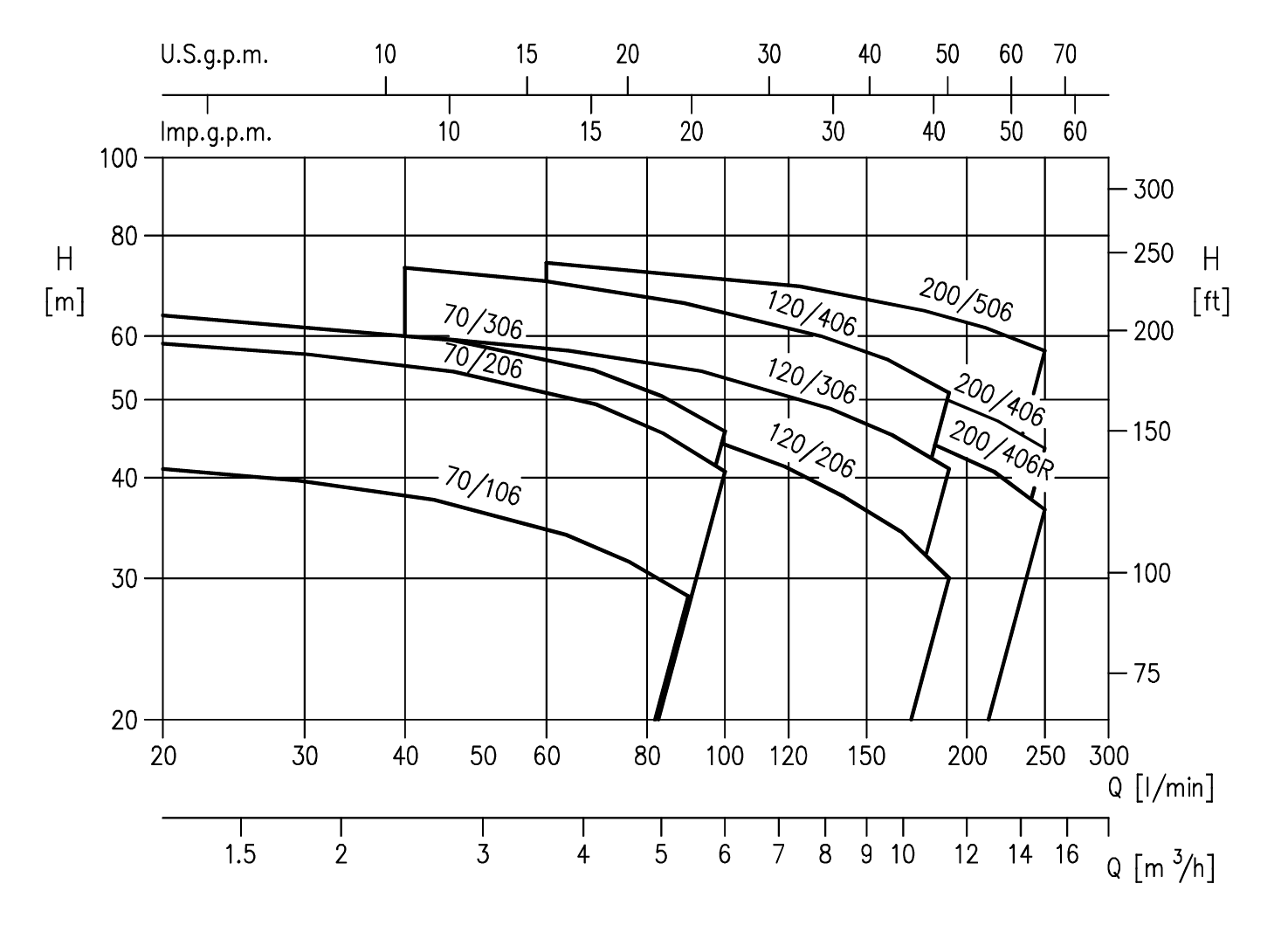

Range Performance Guide

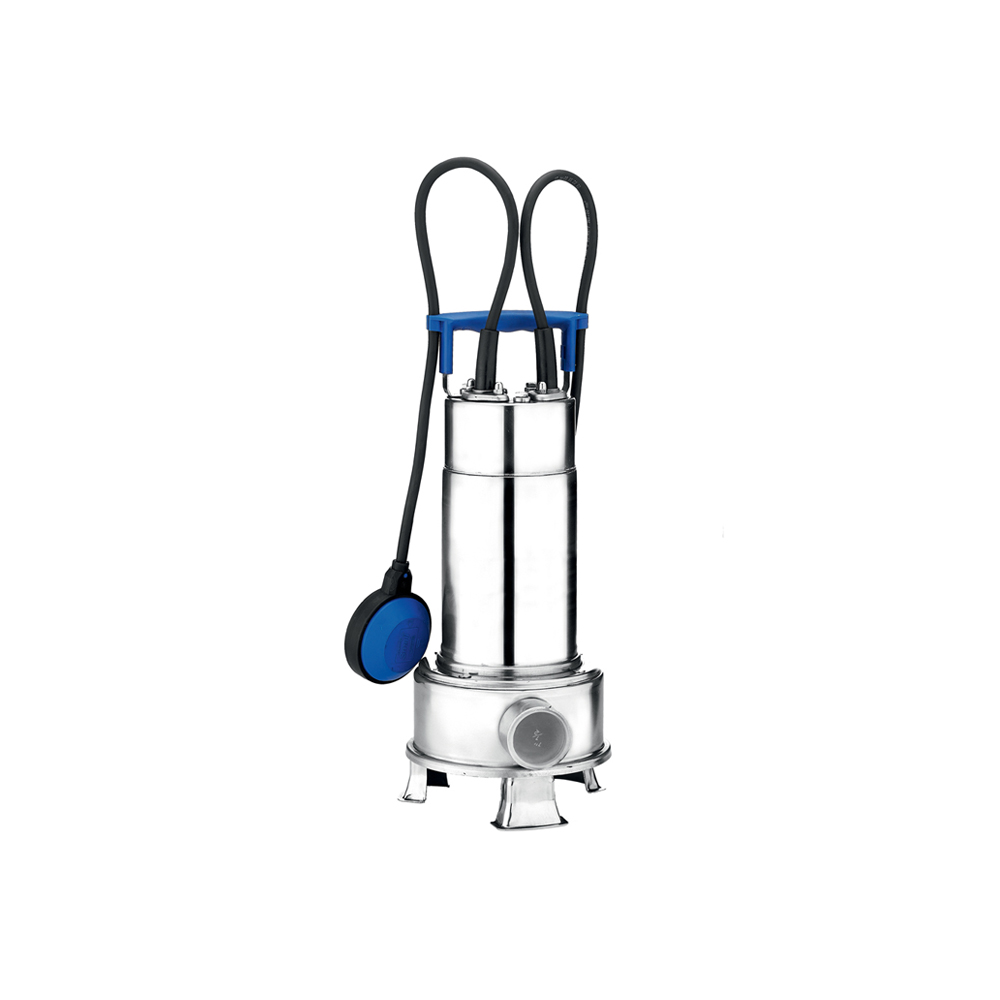

Right Series
Submersible pump in AISI 304 stainless steel for seepage water and sewage draining. Pump body, impeller and shaft all in AISI 304. Comes with 5m cable, with or without float switch.
Key Specs
- Capacity up to 18 m³/h
- Total head up to 9.5 m
- AISI 304 stainless steel body, impeller and shaft
- Available with float switch
- Single phase 230V / Three phase 400V

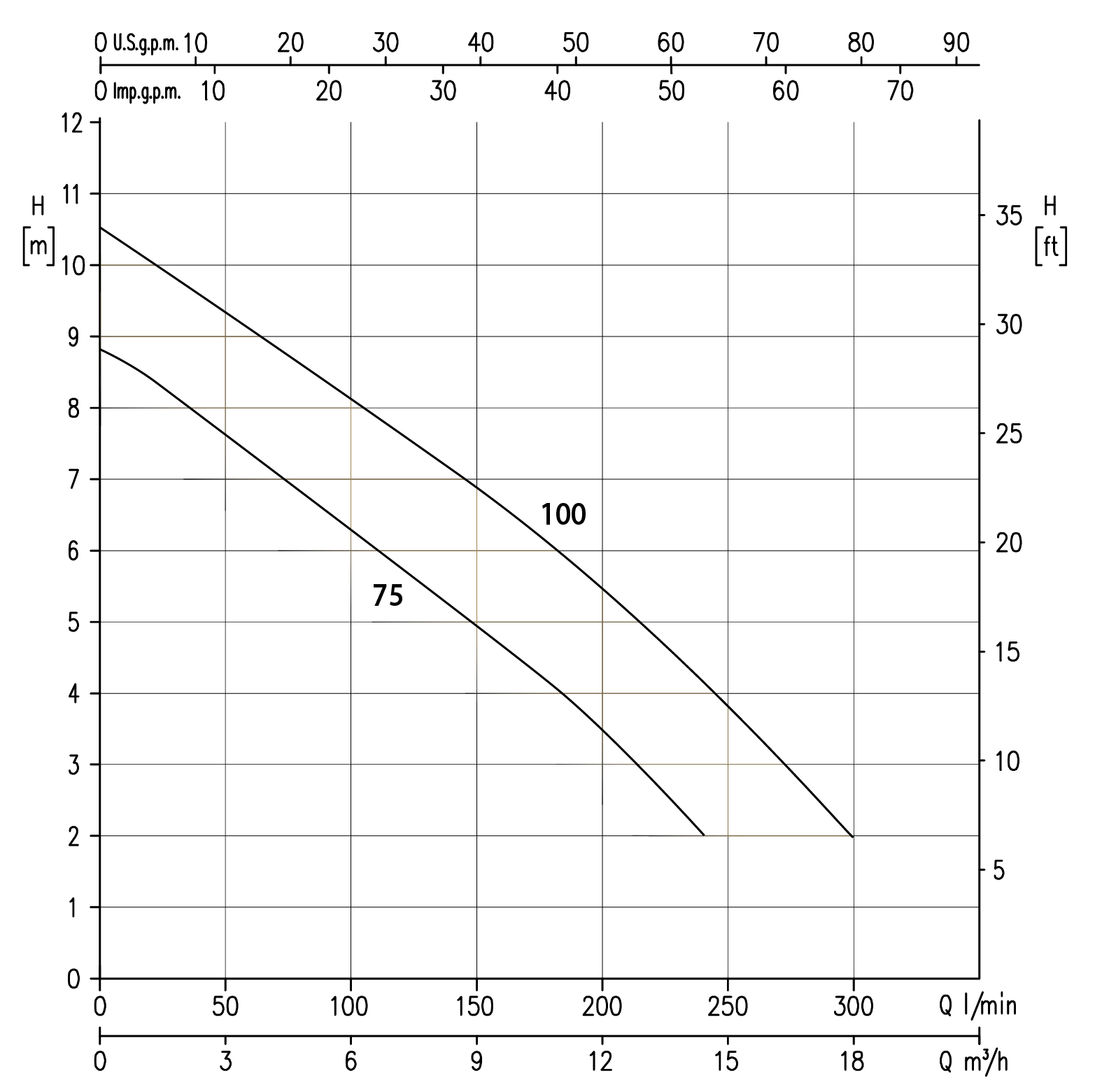

Range Performance Guide

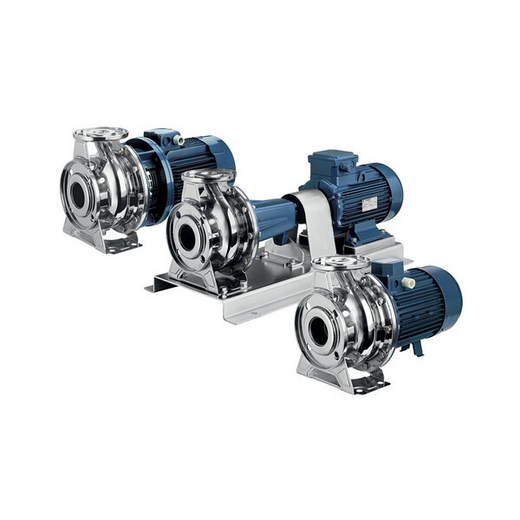

3(L)(4) Series
End-suction centrifugal available with a casing body without support foot — can be mounted in different positions via 90° foot rotation. Ideal for limited-space installations.
Key Specs
- Flow rate up to 240 m³/h
- Total head up to 100 m
- Max. working pressure 10 bar
- Temperature -5°C to +90°C standard / +120°C E version
- Flexible foot rotation for tight installations

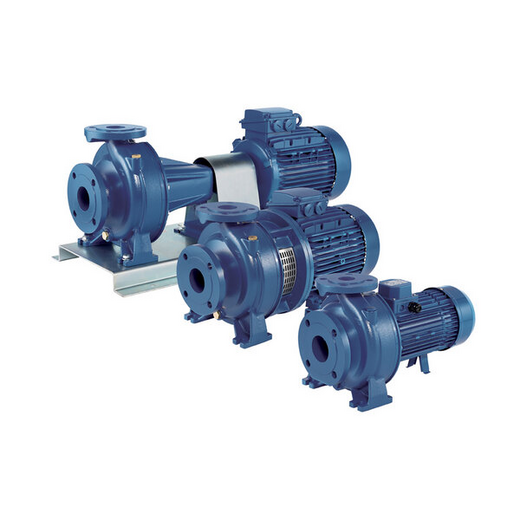

3D(4) Series
Standardised cast iron centrifugal pump with AISI 304 and 316 steel impeller, axial suction and radial discharge. Back pull-out design allows motor, coupling, bracket and impeller to be removed without disassembling piping.
Key Specs
- Flow rate up to 138 m³/h
- Total head up to 70 m
- Max. working pressure 10 bar
- Liquid temperature -5°C to +90°C
- Back pull-out design for easy maintenance
- AISI 304 / 316 stainless steel impeller
GS Series
Self-priming centrifugal pump for irrigation, drainage and civil water supply applications requiring priming capability.
Key Specs
- Self-priming design
- Suitable for irrigation and drainage
- Civil and light industrial applications
Key Features
What Sets Ebara Apart
- Japanese manufacturing precision
- Long service life
- Energy-efficient motor options
- Cast iron and stainless steel construction
Applications
Industries We Serve
Need More Information?
Let Our Sales Team Help You Specify the Right Pump.
Tell us your application — flow rate, head, fluid type and site conditions — and we'll recommend the right Ebara pump at no charge.
Get Started Today
Need the right pump for your application?
Describe your application by flow rate, head, fluid type, and operating conditions, and our team will specify the right pump from our portfolio of 36+ stocked brands.
